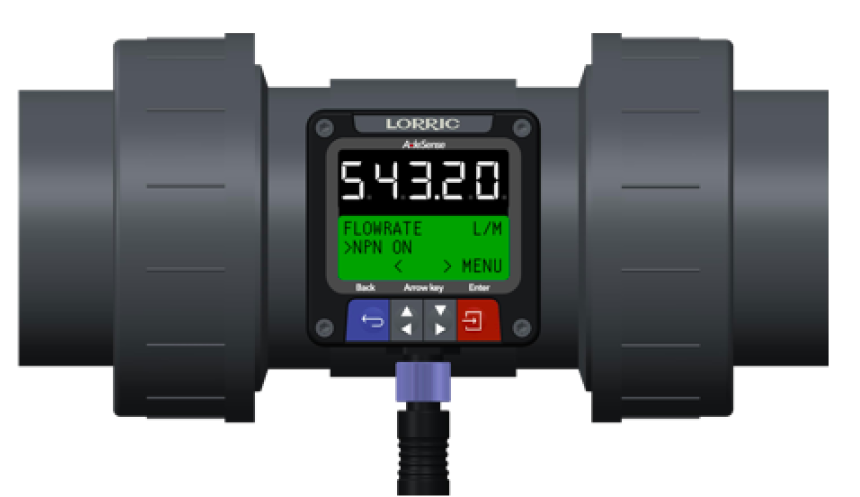

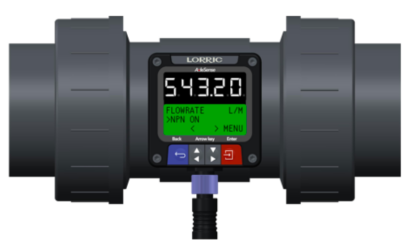

FP-AS510 Paddlewheel Flowmeter

Description

Wider Detection Range

Traditional paddle wheel flow meter often have significant errors or cannot detect flow at low flow rates in the fluid inside the pipe. Upgrade your flow measurement capabilities with LORRIC’s AxleSense technology! No more worries about inaccurate readings or missed low flow rates. Our advanced innovation ensures enhanced accuracy and a broader measurement range, spanning from 0.15 m/s to 10 m/s—double that of competing brands.

Bi-Directional Flow Detection

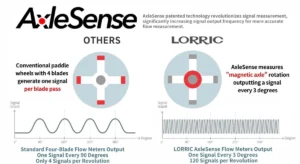

AxleSense’s patented technology enables bidirectional flow detection by measuring paddlewheel rotation direction, overcoming the limitations of other brands that use Hall effect sensors, which can detect rotation but not direction. This technology also provides fluid flow direction information, positive/negative/net flow calculations, and a 14-day history of daily accumulations, optimizing operations and enhancing on-site management efficiency.

Real-Time Smart Detection

Provides clear paddle anomaly alerts, essential for Industry 4.0 integration. It quickly resolves flow issues by syncing with factory management systems. Built-in magnetic sensing checks paddlewheel magnet strength, ensuring consistent flow accuracy through regular monitoring and scheduled replacements.

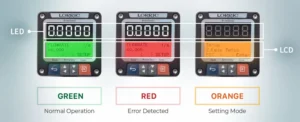

Dual LCD/LED screens for easy traffic and equipment status monitoring

• High-brightness large LED screen for easy long-distance flow number reading.
• LCD screen backlight with three-color warning light signal for visual monitoring of flow meter’s normal and abnormal conditions.

Screen can be switched according to vertical or horizontal piping

Adjust the viewing direction of the screen according to the piping direction, which is convenient for flow monitoring in different piping situations.

Multiple Communication Outputs

FU-ES supports various communication modes like Analog output with self-powered 16-bit 4-20mA, Modbus RTU RS485, 2-wire photoelectric switch signal (compatible with NPN/PNP). No need for additional communication modules – we’ve got you covered!

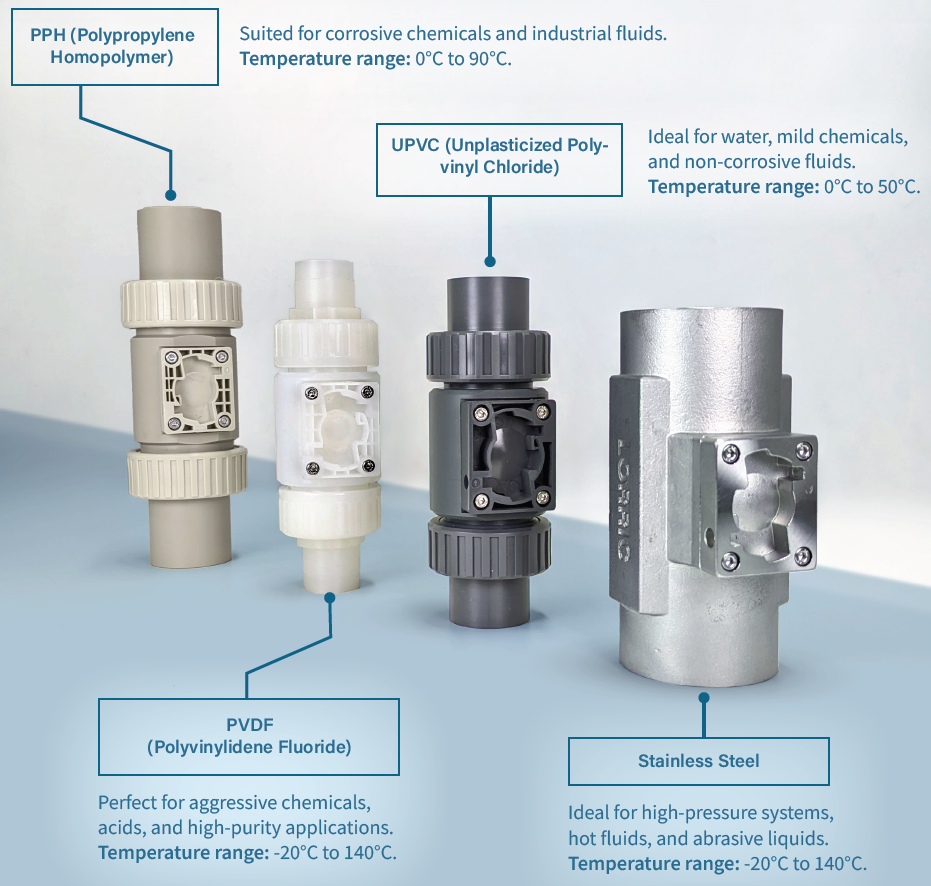

Any Fluid, Multiple Material Choices
